Kawasaki Z1 & early Z1A - Keyster KK-0170NR single carb rebuild kit.
We use and recommend these high quality kits which are manufactured in Japan.
All parts are a high quality reproduction of the original parts.
Fitment
Suitable for the Mikuni VM28SC (type 2170) slide carburettors fitted to Kawasaki Z1 & early Z1A motorcycles.

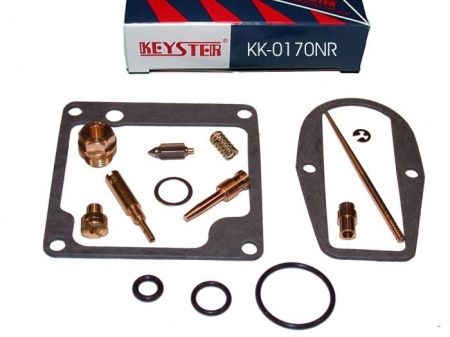

Each kit contains:
1 x Cap gasket
1 x Bowl chamber gasket
1 x Float valve set
1 x Jet needle with clip
1 x Needle jet
1 x Air screw with o-ring
1 x 112.5 Main jet
1 x 20.0 Pilot jet
1 x Drain screw o-ring
1 x choke plunger o-ring
How to identify which version of the Mikuni VM28CS you have:
- Generally these carbs were originally fitted on bikes with VIN Z1E032817 and LOWER
- Has 1470, 1472 or 1473 stamped on the carburettor body
- Has large, cast, hexagonal float bowl drain screws
If in doubt, please contact us.
Note: Four kits needed for a full bank of carbs.
