Kawasaki Z650B - Keyster KK-0146NR single carb rebuild kit.
We use and recommend these high quality kits which are manufactured in Japan.
All parts are a high quality reproduction of the original parts.
Fitment
Suitable for the Mikuni VM24 slide carburettors fitted to the Kawasaki Z650B motorcycles.

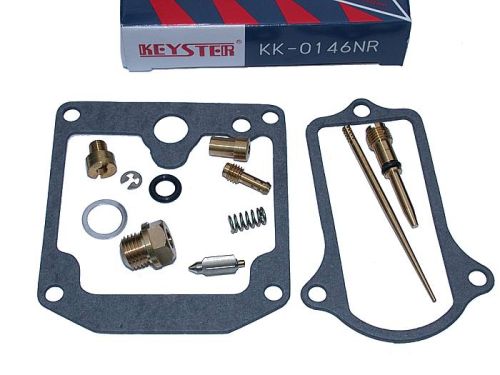

Each kit contains:
1 x Cap gasket
1 x Bowl chamber gasket
1 x Float valve set
1 x Jet needle with clip
1 x Needle jet
1 x Air screw with o-ring
1 x 102 Main jet
1 x 15 Pilot jet
1 x Drain screw o-ring
1 x choke plunger o-ring
How to identify which version of the Mikuni VM24 you have:
Airscrew located on the side of the carb body
If in doubt, please contact us.
Note: Four kits needed for a full bank of carbs.
