Kawasaki Z900A4/5 - Keyster KK-0161NR single carb rebuild kit.
We use and recommend these high quality kits which are manufactured in Japan.
All parts are a high quality reproduction of the original parts.
Fitment
Suitable for the Mikuni VM26SC (type Z1200) slide carburettors fitted to Kawasaki Z900A4/5 motorcycles.

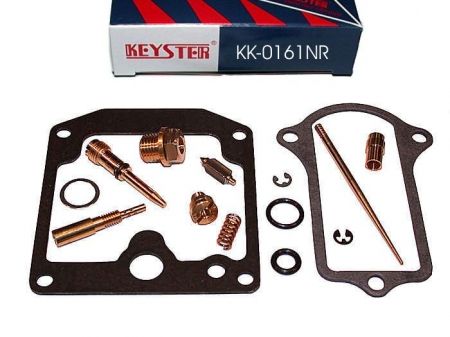

Each kit contains:
1 x Cap gasket
1 x Bowl chamber gasket
1 x Float valve set
1 x Jet needle with clip
1 x Needle jet
1 x Air screw with o-ring
1 x 115 Main jet
1 x 17.5 Pilot jet
1 x Drain screw o-ring
1 x choke plunger o-ring
How to identify your Z900 carbs:
- Has Z1200 stamped on the carburettor body
- Has slotted float bowl drain screws which are located on the side of the float bowl bottom
- Side mounted air screws
If in doubt, please contact us.
Note: Four kits needed for a full bank of carbs.
