Kawasaki Z1000A1 - Keyster KK-0157NR single carb rebuild kit.
We use and recommend these high quality kits which are manufactured in Japan.
All parts are a high quality reproduction of the original parts.
Fitment
Suitable for the Mikuni VM26 slide carburettors fitted to Kawasaki Z1000a1 motorcycles.

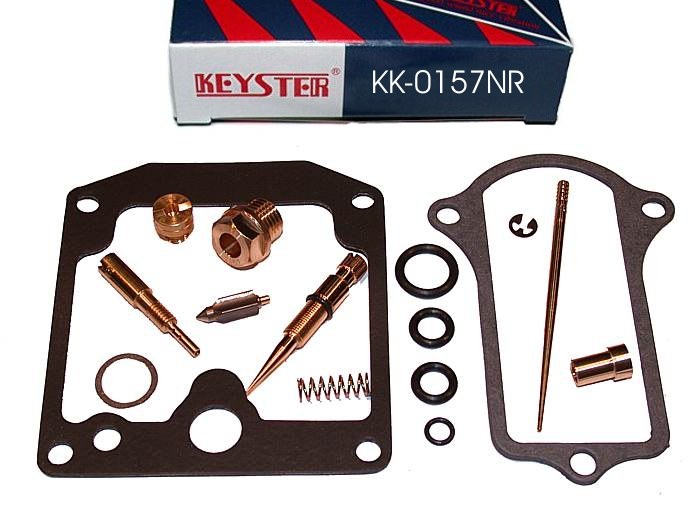

Each kit contains:
1 x Cap gasket
1 x Bowl chamber gasket
1 x Float valve set
1 x Jet needle with clip
1 x Needle jet
1 x Air screw with o-ring
1 x 107.5 Main jet
1 x 17.5 Pilot jet
1 x Drain screw o-ring
1 x Emulsion tube o-ring
1 x choke plunger o-ring
How to identify your carbs:
- Z9902 stamped on the carburettor body
- Has slotted float bowl drain screws which are located on the side of the float bowl bottom
- Bottom mounted air screws
If in doubt, please contact us.
Note: Four kits needed for a full bank of carbs.
